Quick Details

  • Condition: New
  • Type: Band Saw, CNC type
  • Use: Woodworking
  • Style: Horizontal
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: SUBS
  • Model Number: SDJ-2000
  • Usage: Cutting Wood
  • Voltage: 380V
  • Power(W): 12kw
  • Dimension(L*W*H): 5000*2200*1700MM
  • Weight: 2000kg
  • Certification: avaliable if asked
  • Warranty: 12 Months, 12 Months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Application: curve-sawing
  • number of motion axis: 3 axis
  • Saw blade size: 5340*16*0.8mm
  • blade rotation angle: +90 degrees to -90 degrees
  • Processing height: 150mm
  • Max.working speed: 0-20m / Min.
  • Max working size: 2000*1250mm
  • Dust suction inlet: Dia100MM*2pcs

Packaging & Delivery

Packaging Details Standared export packaging and fasten by iron nail
Delivery Time 20 workdays after received deposit
Product Description

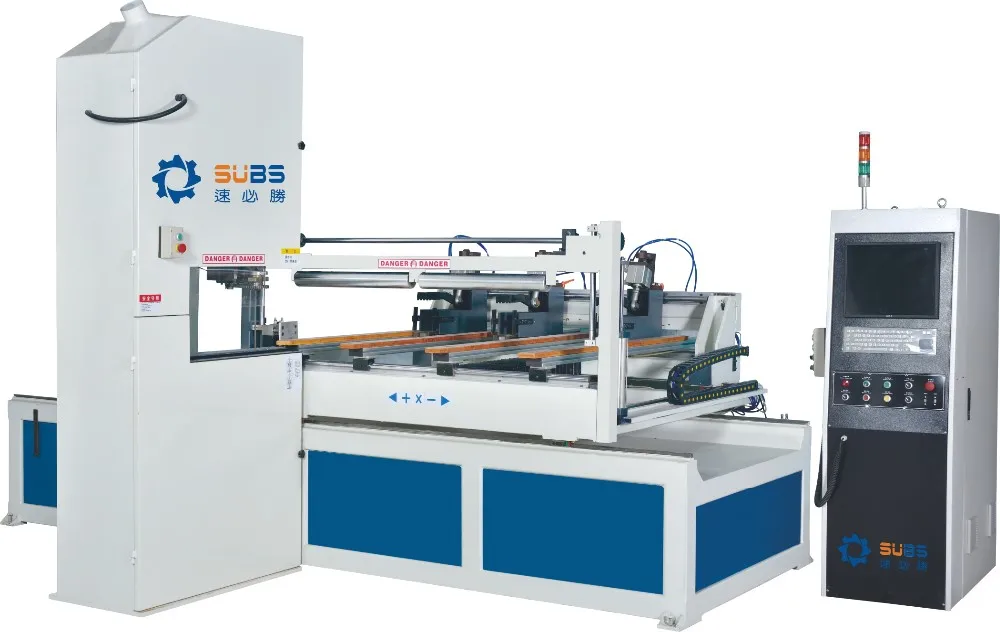

Product Name:  Dongguan SUBS high quality 2m processing length CNC wood cutting band saw

We have four different size for the band-sawing machine,and all the details of this page includes weight,size and price are the blue one as below .

Model
SDJ-1200
SDJ-1500
SDJ-2000
SDJ-2500
Number of universal driving CNC shafts
3 shafts linkage
3 shafts linkage
3 shafts linkage
3 shafts linkage
Saw blade specification
5340*16*0.8mm
5340*16*0.8mm
5340*16*0.8mm
5340*16*0.8mm
Saw wheel diameter
760mm
760mm
760mm
760mm
Saw blade rotation angle
+90° to -90°
+90° to -90°
+90° to -90°
+90° to -90°
Spindle power
7.5kw
7.5kw
7.5kw
7.5kw
Max.working speed
0-20M / Min
0-20M / Min
0-20M / Min
0-20M / Min
Max.retraction speed
40M / Min
40M / Min
40M / Min
40M / Min
Processing height
150mm
150mm
150mm
150mm
X-axis servo motor
1.0kw
2.0kw
2.0kw
3.0kw
Y-axis servo motor
1.0kw
1.0kw
1.0kw
1.0kw
Z-axis servo motor
0.4kw*2
0.4kw*2
0.4kw*2
0.4kw*2
Max. working size
1200*1250mm
1500*1250mm
2000*1250mm
2500*1250mm
Working air pressure
6kgs
6kgs
6kgs
6kgs
Dust suction inlet
Dia:100mm*2pcs
Dia:100mm*2pcs
Dia:100mm*2pcs
Dia:100mm*2pcs
Electrical cubicle sizes
1050*550*1800mm
1050*550*1800mm
1050*550*1800mm
1050*550*1800mm
Machine body sizes
2800*2200*1700mm
4000*2200*1700mm
5000*2200*1700mm
5900*2200*1700mm
Machine head sizes
1000*900*2500mm
1000*900*2500mm
1000*900*2500mm
1000*900*2500mm

Our CNC Band-sawing machine has fast and efficient weapon of Jog Sawing;Daily capacity up to more than 3,000 pcs rear legs of the chairs which equivalent of six to seven skilled workers;Save abot 2mm of timber stock per saw line.

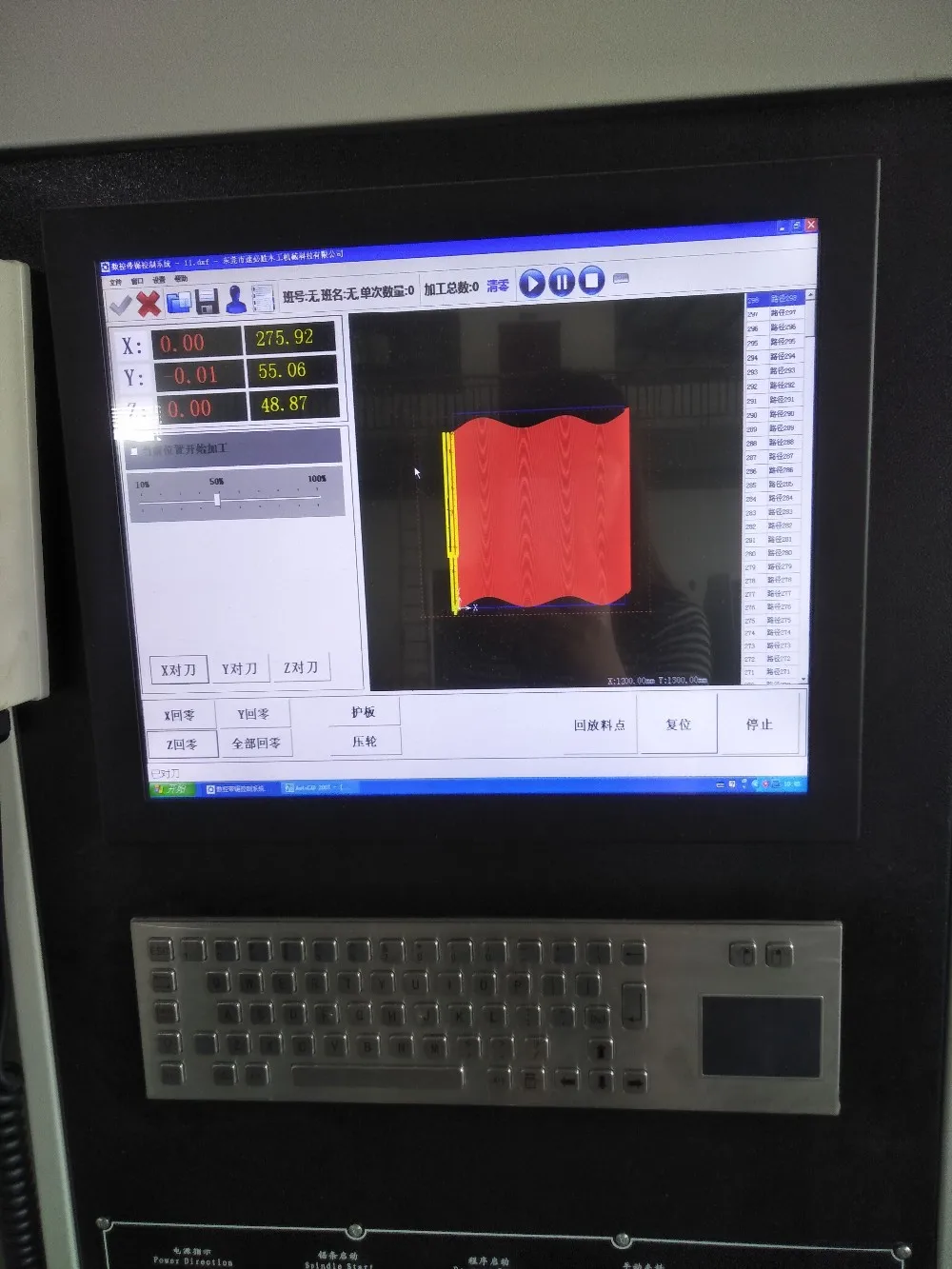

Precision electrical control cubicle with computer

We invent the software by our own,when opening a file,the system will display the sequence of machining paths,and humanized tips are avaliable to prevent any machine failure to identify malfunction caused due to wrong patten

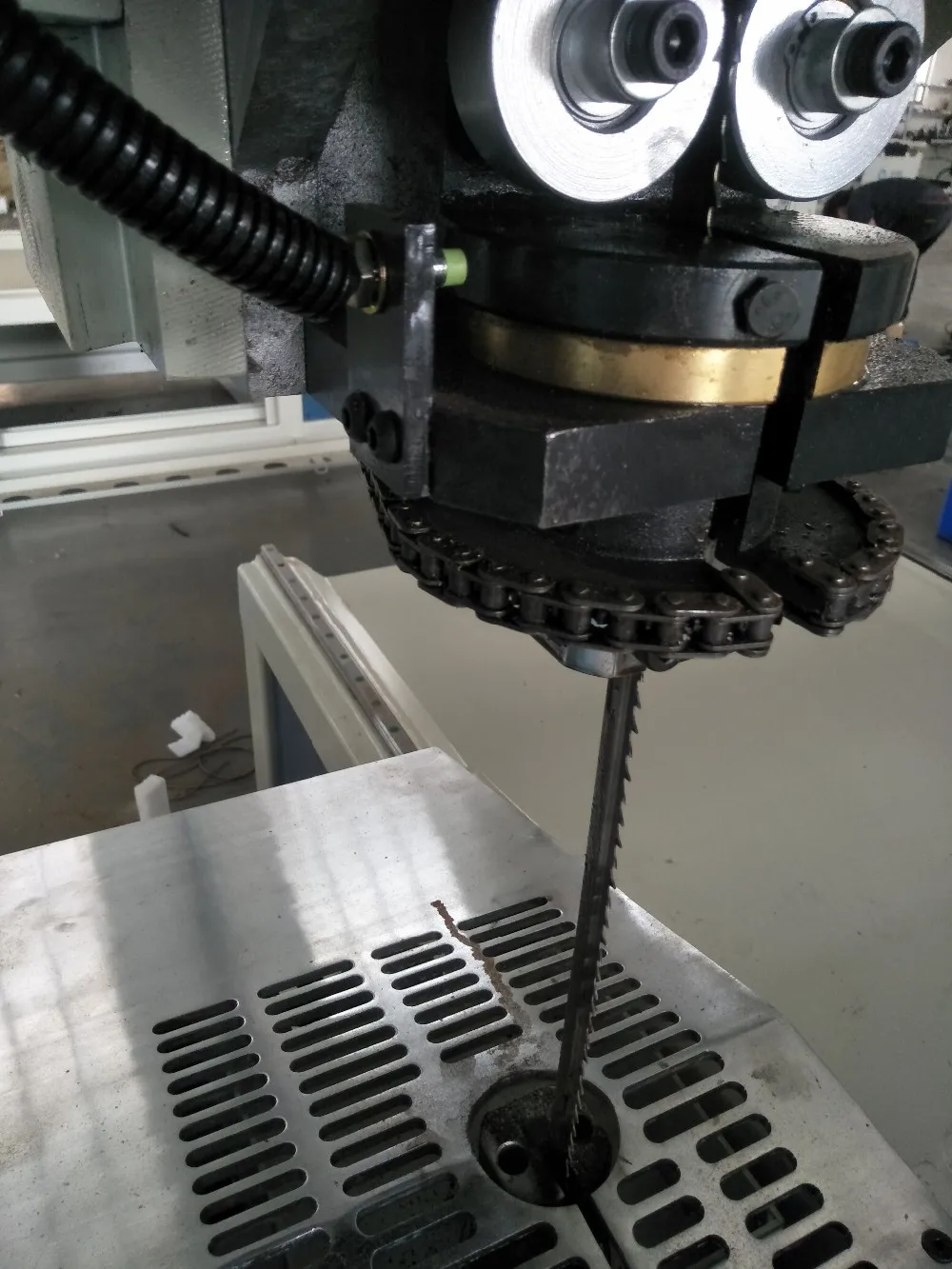

Blade rotation:+90degrees to -90degrees.

Can make both ends fluch,linear and circular arc velocity can fully optimise.It is possible to automatically set a cornering speed for different radius,and support the splines perfectly.

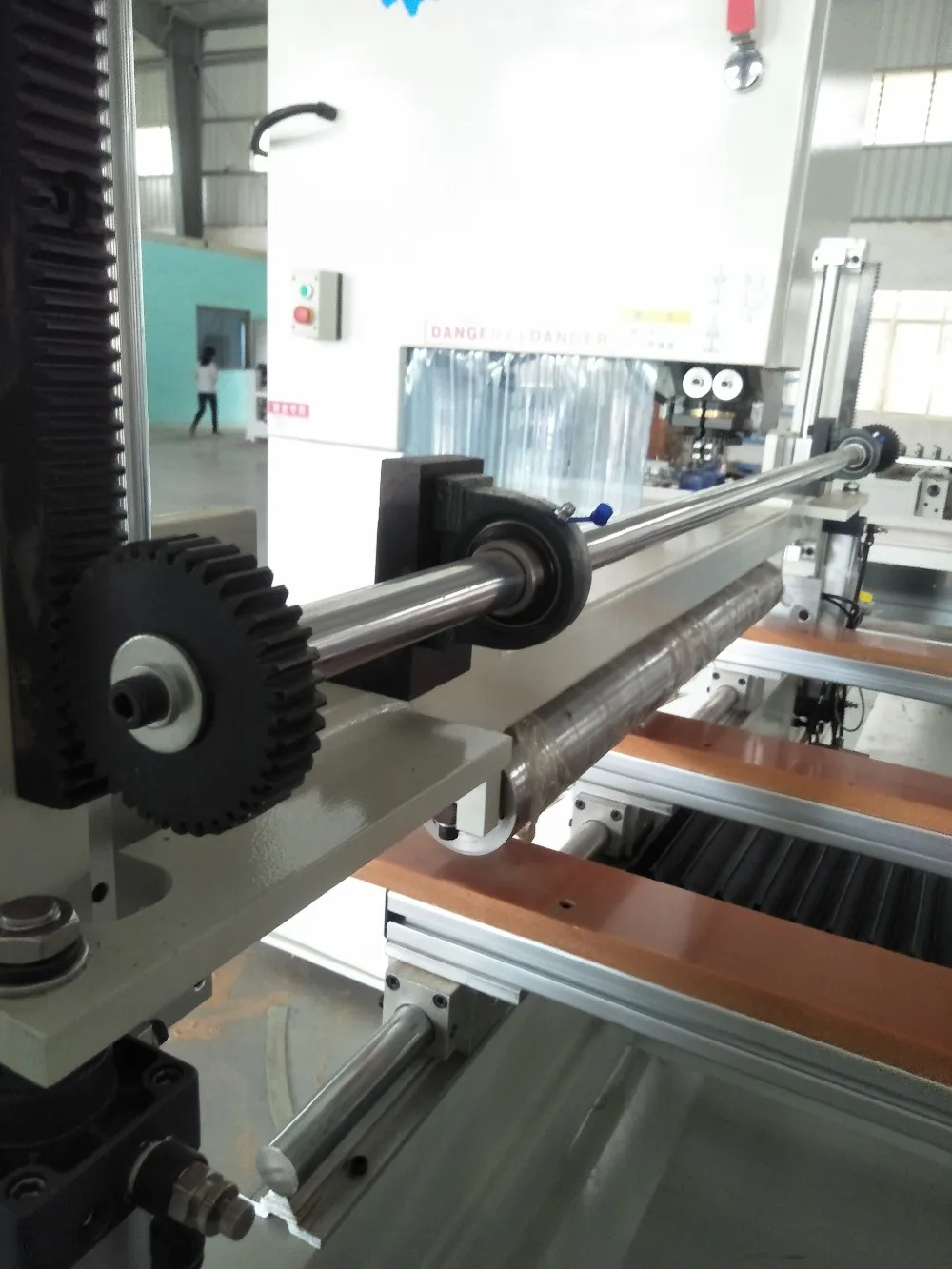

Synchronous nip rolls,can effectively resolving the problem of uneven timber stock.

Stock clamping device with telescopic stock clamps.

Excess-stock processing

We initiate the function of the excess-stock processing which is very useful,especially for the different width of the wood panel.

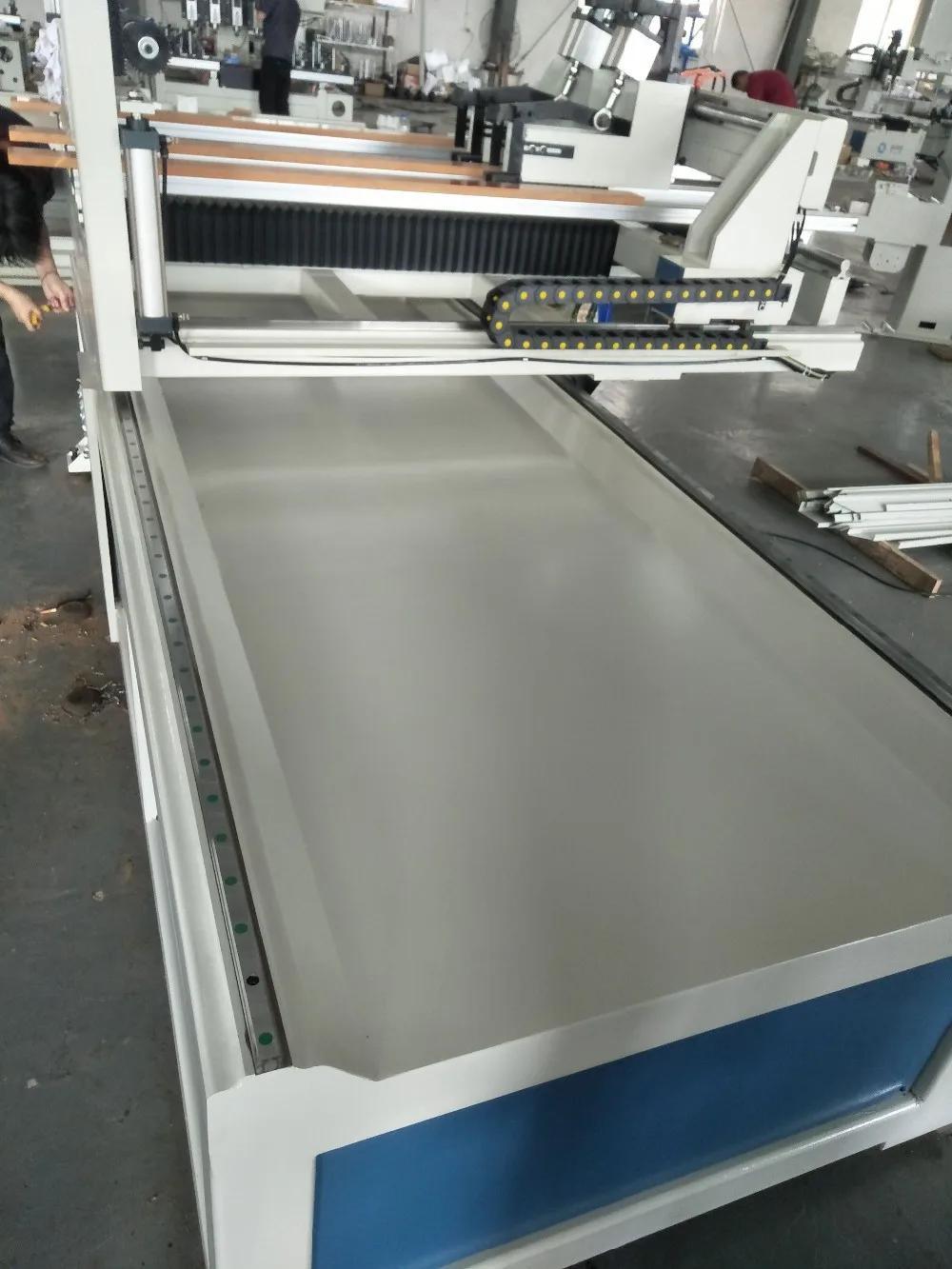

Machine table slide

Max. working speed is 0 to 20 M per minutes,and max. retraction speed is 40 M per minutes.

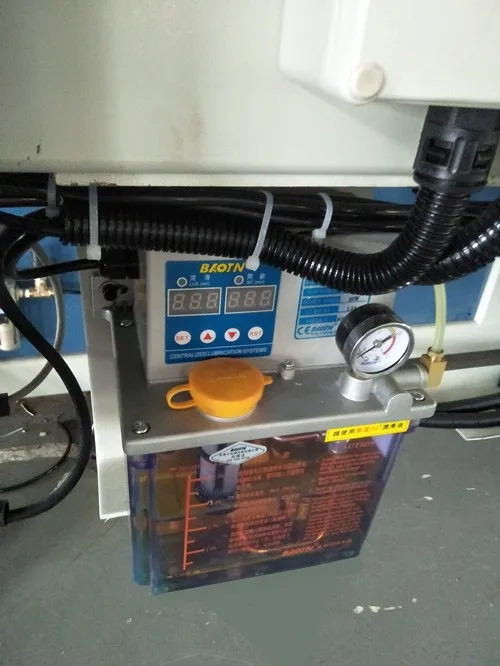

Automatically add lubricating oil machine


Application&Sample
Packing & Delivery

Covered with film package and fasten by iron nail

Patent

We already owned two certification of the patent:

One is a device for band-sawing machine,it has an adjustable device to clamp the blade tightly,compare the machine with other company,when using the worn clamp device,the loose one will increase reject ratio,but at the meanwhile when you choose our machine,the workers can tighten the blade anytime and no need to change a new whole device everytime when it worn.

The second one is Tenon working center ,it has duplex working station,5-axis linkage,circular cutter,saw blade,milling cutter and square auger working at the same time which could produce complex tenon and mortise one take.

Company Profile

As a professional woodworking machinery manufacturer,Dongguan Susheng Machinery Company limited intergrates research,design,production with sales,focus on solid-wood machinery as leading products,and most of the parts are import from Taiwan,thus we can offer a very compititive price and guarantee the quality at the same time.We boast senior engineers who have years of experience in automation equipment industry,we have skilled workers and professional sales team.We pay much attention to the after-service to make sure the satisfaction of our clients all over the world.We already have two patents of our product,and welcome to have a visit of our factory.

Exhibition

Our company took part in a lot of Exhibition not only in China but also in Malaysia and Vietnam which have our distributor.So many clients show great interests to our company since our products are high-tech,very cheap and with high quality,we are looking forward to cooperate with you by our professional product and service,and ready to achieve more together.

FAQ

1.What is your MOQ?
Our MOQ is 1 piece.

2.Can you accept custom made?
That depends,you can contact our sales first to tell your special request,and our sales will reply you ASAP.

3.Do you have catalog and price list?
Yes,we do,and we would like to send them to you.

4.What is your delivery time?
Normally our delivery time is 15-25 workdays.

5.Can I be the distributor of your machine?
Sure,we would like to build a long business relationship with your company.

6.How can I install and operate the machine after I received the machine?
We will dispatch a senior engineer to your country and teach your engineer all things,but please notice your company should find someone speak Chinese to translate to you guys.

7.Can the software be translated into our language?
Of course we can translated it into your language,and because our company invented the software,so if you have any problems during using,we can help you solve it in a very short time,save time to find the third party to solve.


8.What is your warrenty?
Our warrenty is 12 months,if some parts are broken or not work very well within 12 months,we will help you to solve the problem and send a new part if needed,and all the charge would be on us.
